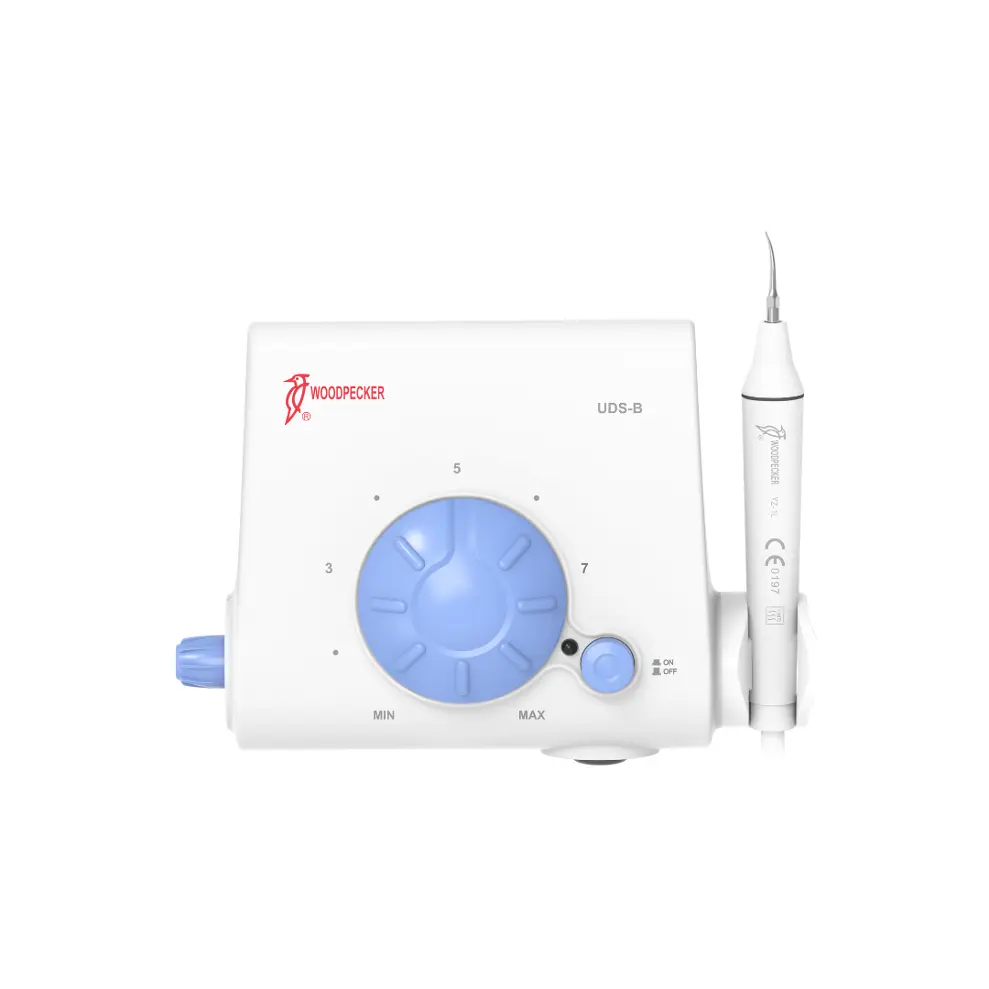

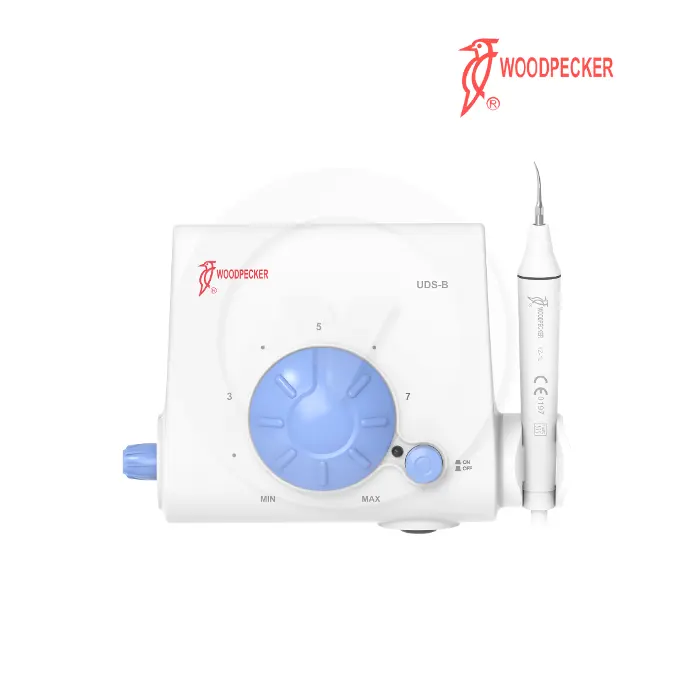

Woodpecker Ultrasonic Scaler UDS-B

https://ld-trading.odoo.com/web/image/product.template/15784/image_1920?unique=4b07d4e

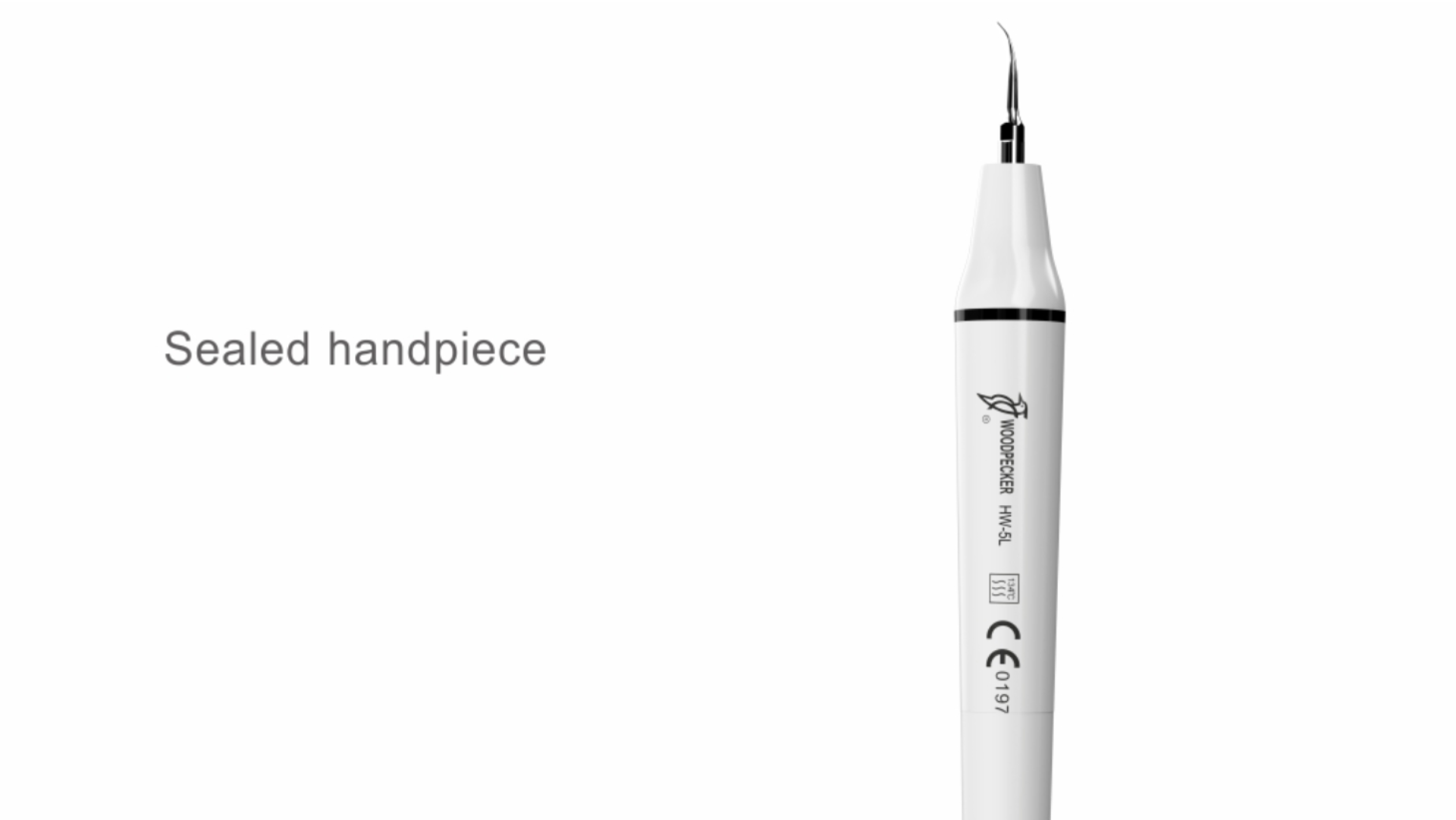

Ultrasonic Scaler with LED Handpiece

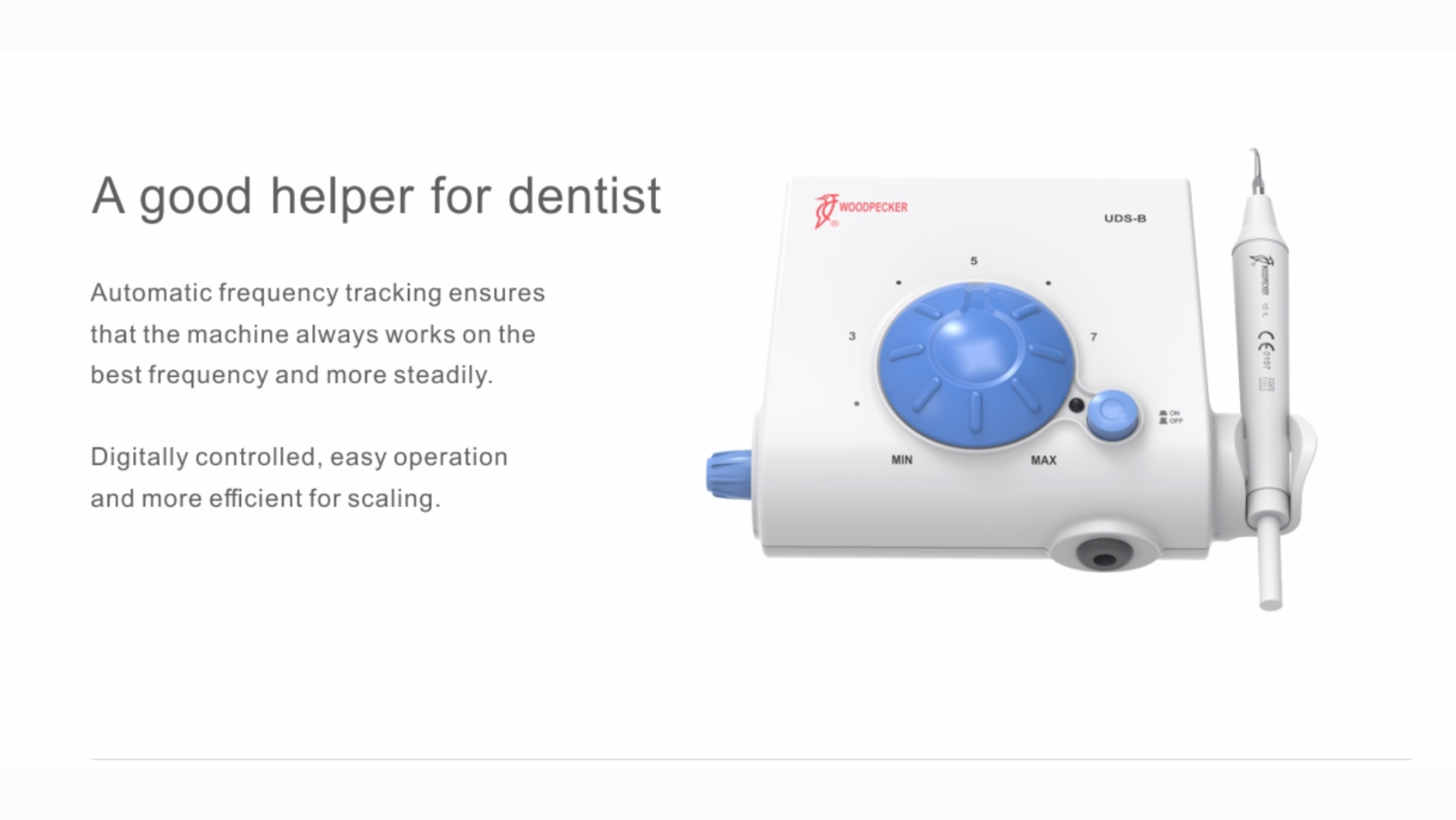

The UDS-B ultrasonic scaler features automatic frequency tracking for optimal, stable performance and digital controls for easy, efficient operation.

Login | Register to see price

Not Available For Sale

  • Brand
  • Model

This combination does not exist.

Contact Us
Brand: Woodpecker
Model: UDS-B
Woodpecker
Woodpecker

Woodpecker is a leading dental equipment manufacturer, specializing in innovative products like ultrasonic scalers, curing lights, and imaging systems, trusted by professionals worldwide for quality and precision.




UDS-B Ultrasonic Scaler

GENERAL. PERIODONTAL. FUNCTIONS

​ Power Supply Input:  220 - 240V~ 50Hz/60Hz 150mA

​ Main Unit Input: 24V~ 1.3A

​ Output Primary Tip Vibration Excursion:  ≤100μm

​ Output Half Excursion Force: <2N

​ Output tip Vibration frequency: 30kHz±3kHz

​ Output power: 3W to 20W


​ Main Unit Fuse: T l.6AL 250V

​ Power Supply Fuse: T0.5AL 250V

​ Water Pressure: 0.01MPa ~0.5MPa

​ Weight of Main Unit: 0.62kg

​ Weight of Power Supply: 1kg

​ Dimensions: 19.2 x 12.8 x 7.8 cm

UDS-B Scaler Manual

​ Download
